All-in-One Greenhouse Climate Control — Simple, Safe, Local
One system for sensors, climate logic and electrical automation. Retrofit existing greenhouses or build new. Software control and electrical cabinets are designed separately for safety — and the system runs locally with onboard storage, even without cloud.
نظام مناخي متكامل — تحكم بسيط وآمن ويعمل محلياً
All-in-one · Retrofit ready · Local operation · Factory direct
What This System Is Built For
All-in-one climate system
Weather station, sensors, climate strategies and equipment control in one coordinated platform — not scattered timers and separate boxes.
Retrofit existing systems
Upgrade what you already have. Keep pumps, fans and cabinets where possible; add the control and automation layer that makes them work together.
Electrical automation management
Manage ventilation, wet curtains, circulation fans, shade screens, heating and CO₂ equipment through structured group control and sequential startup.
Simple, convenient control
Android touchscreen HMI for daily operation — clear zone status, alarms and setpoints without complex PLC programming on the farm floor.
Software ≠ electrical power layer
Climate software issues commands; the electrical control cabinet handles high-power switching. Separation keeps operation safer and more reliable.
Local-first with onboard storage
Strategies and records are saved on local hardware. The greenhouse keeps running when the internet is weak or unavailable. Cloud is optional.
Built for Commercial Greenhouse Operators
Your greenhouse has equipment — but not one clear control system
All-in-one climate logic coordinates sensors and equipment. Retrofit existing setups or deploy as a complete system for new houses.
Mixing software control with high-power switching is risky
Software and electrical automation are designed separately. The controller manages logic; Schneider-compatible cabinets execute power switching safely.
Cloud-only systems fail when the farm network drops
Built-in hardware storage supports local operation — strategies, setpoints and records stay on site. Remote monitoring is optional, not required.
How All-in-One Climate Control Works
Sense the outdoor and indoor environment, apply crop strategies, drive electrical automation safely, and keep everything running locally with saved parameters.
Sense
Outdoor weather station + greenhouse sensors for temperature, humidity, CO₂ and light.
Decide
Crop and weather strategies set targets. Simple HMI control for daily farm operation.
Act safely
Logic commands go to the electrical cabinet. Fans, wet curtains, shade and CO₂ run through separated power control.
Run locally
Onboard storage keeps strategies and records on the controller — local operation first, cloud optional.

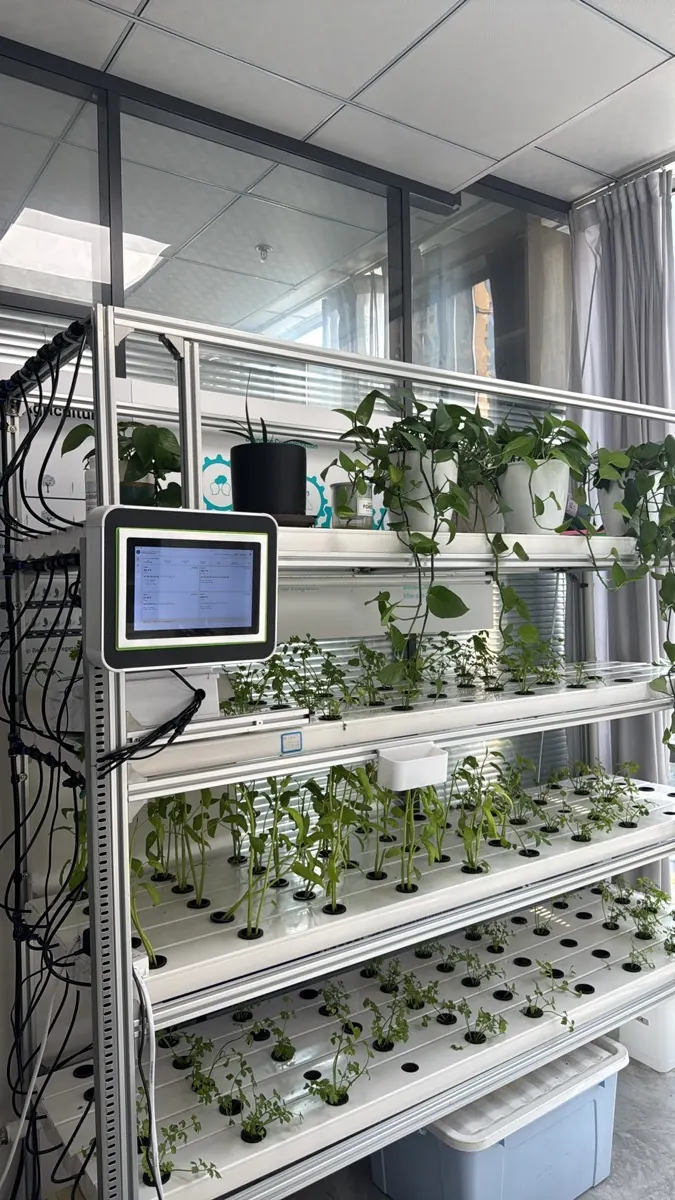

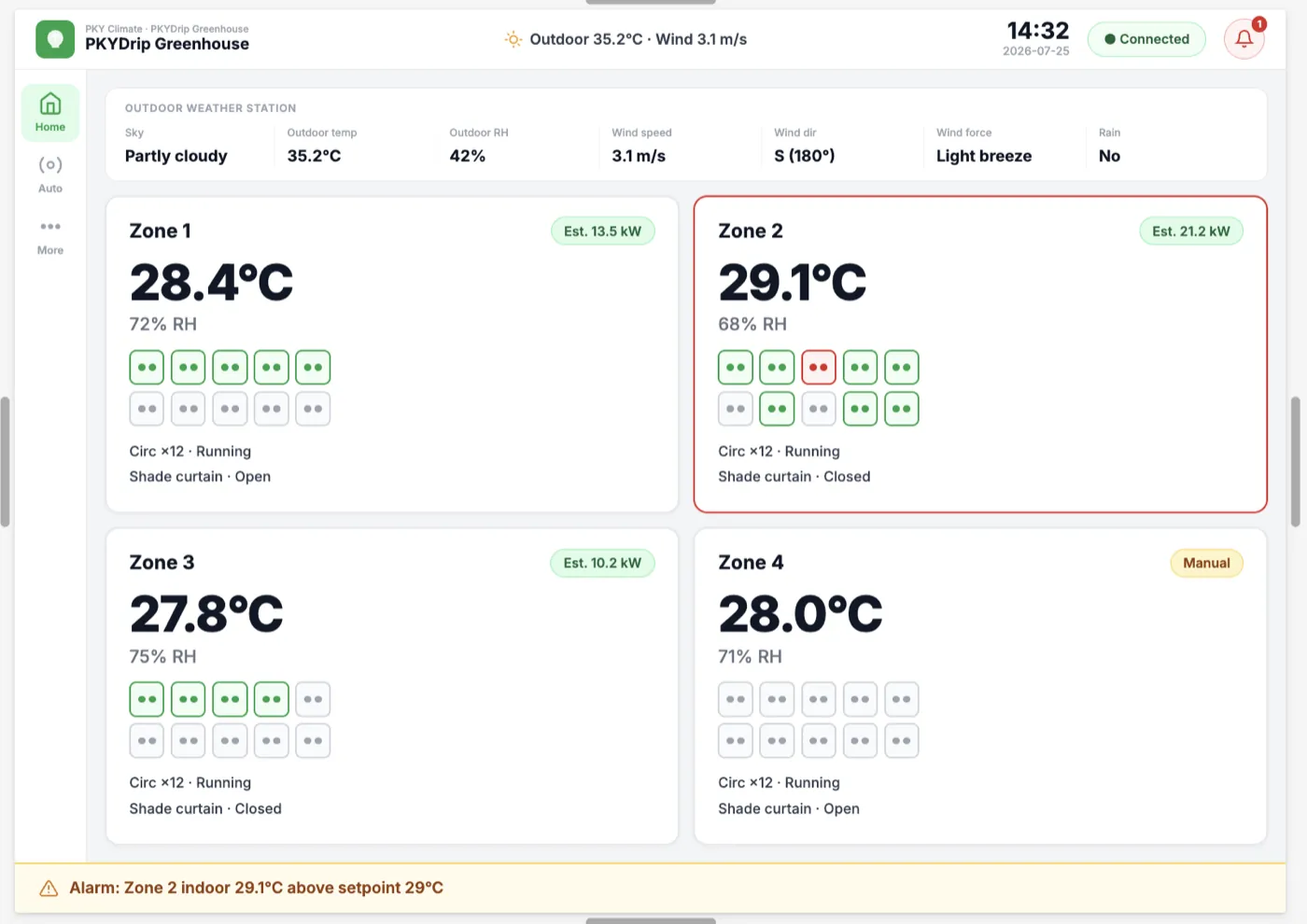

Simple Control on Android HMI
Weather, multi-zone climate, equipment status and alarms in one view — easy for operators, ready for electrical automation coordination.
Software Logic + Electrical Cabinet — Separated by Design
PKY Climate Controller = logic & local storage. Electrical control cabinet = high-power switching (contactors & relays). MQTT cloud optional — local operation is the baseline.

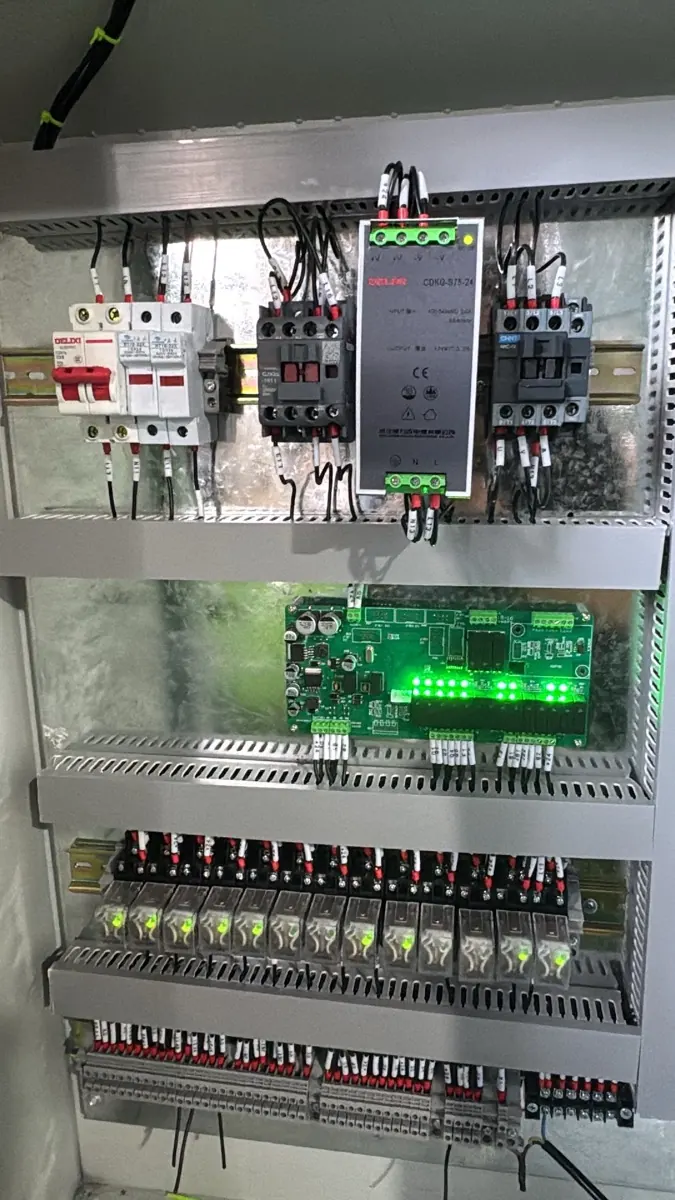

Electrical Power Layer — Inside the Control Cabinet
High-power switching stays in the electrical cabinet: breakers, contactors, relays and labeled field terminals. The climate software issues commands; the cabinet executes them safely.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Scope | All-in-one climate control — sensors, logic, HMI, electrical automation coordination |
| Retrofit Support | Upgrade existing greenhouses; keep compatible fans, cabinets and field equipment |
| Design Principle | Software control layer separated from electrical power switching layer |
| Local Operation | Onboard hardware storage — strategies and records run without cloud |
| Control Groups | Up to 64 output channels |
| Sequential Startup | Each group ≤ 2 kW inrush, adjustable delay |
| Sensors Supported | Outdoor weather station, Temp/Humidity, CO₂, Light |
| Controlled Equipment | Fans, wet curtains, circulation fans, shade screens, CO₂ generators, heating |
| Communication | RS485 Modbus RTU/TCP + optional MQTT |
| HMI Display | 7" / 10" Android industrial touchscreen |
| Electrical Cabinet | Compatible with Schneider Electric D-type contactors |
| Power Supply | 380V 3-phase / 220V single-phase (specify) |
| Enclosure | IP54, S/M/L/XL sizes |
| Crop Strategies | Set, save and reuse parameters by crop and weather conditions |
| Lead Time | 3–5 weeks from order |
| OEM Available | Yes, white-label UI and branding |
Return on Investment for UAE & Egypt Farms
Monthly cost (UAE): $720–$950 (salary + employer levy + accommodation)
Based on UAE farm worker total employment cost including expat levy. Actual savings vary by farm size and configuration.
Request a System Recommendation
Tell us whether you need a new all-in-one system or a retrofit of your existing greenhouse — we'll recommend a safe software + electrical configuration. Or WhatsApp us for a faster reply.
