Product Overview

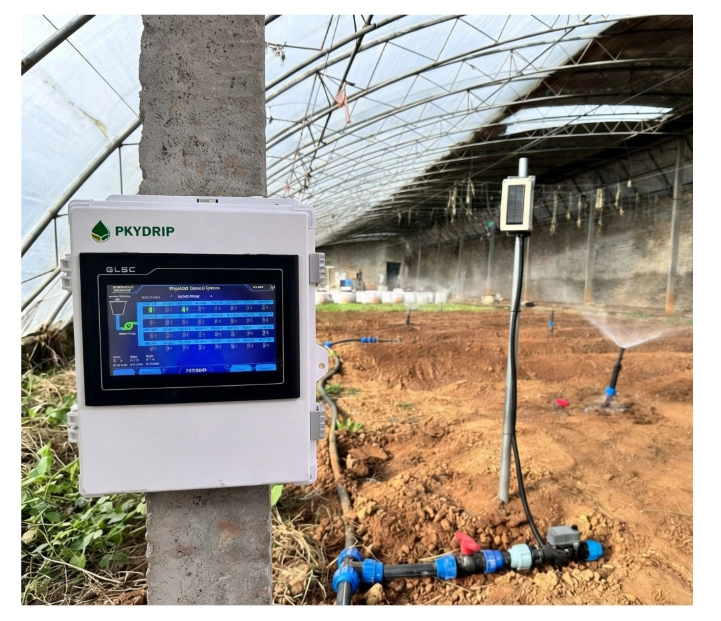

PKYDrip Wired Master Controller (Model PKY-60W) is a professional irrigation control solution designed for agricultural fields, greenhouse cultivation, and municipal landscape irrigation projects. With flexible modular expansion, industrial-grade reliability, and smart management capabilities, PKYDrip provides efficient, stable, and scalable irrigation control for medium to large-scale installations.
Technical Specifications
- Product Code: PKY-60W
- Power Input: AC 220V
- Valve Control Output: 14 outputs (expandable to 60)
- Expansion Module Size: 8cm × 5cm × 4cm
- Communication: 2× RS485 (25 devices per port)
- Analog Inputs: 2× 4–20mA / 0–5V
- Touchscreen: 7" MCGS Industrial Capacitive Panel
- VFD & Pump Control: Yes (up to 10kW)
- Remote Control: LAN / Web / Mobile App
- Main PCB Size: 19cm × 9cm × 4cm
- Enclosure Size: 240mm × 300mm × 120mm
- Protection Level: IP65
- Installation: Wall or Pole Mount
- Cable Interface: M20 Waterproof Glands
- Operating Temp: –20°C to +70°C
Features and Benefits
- Product Code: PKY-60W
- Power Supply: AC 220V input; internal DC 24V output for valve control
- Base Control Outputs: 14 outputs, expandable up to 60
- Communication: 2 RS485 inputs (supporting 25 devices per port)
- Analog Inputs: 2 (4–20mA / 0–5V)
- Touchscreen: 7-inch industrial MCGS capacitive screen
- Device Control: Solenoid/motorized valves, VFDs, and 10kW water pumps
- Remote Control: Local LAN + cloud Web/App control
- Sensor Compatibility: Soil, rain, pressure, flow, etc.
- Housing: IP65 ABS enclosure (240×300×120mm)
- Installation: Wall-mounted or pole-mounted (hoop supported)
Application Scenarios
- ✔ Field crop irrigation (vegetables, fruits, grains)
- ✔ Greenhouse intelligent irrigation
- ✔ Orchard & vineyard drip irrigation
- ✔ Urban landscape & park irrigation
- ✔ Golf course / sports field systems
Contact us for technical drawings, quotes, or integration advice.
