Upgrade Existing Irrigation Systems Without Rebuilding Everything
Many farms already have part of the irrigation infrastructure in place.
They may already have a bore pump, a reservoir, a main pipeline, or several manual valves.
The real problem is often not “how to build a new system from zero,” but how to upgrade the existing system into a more stable and manageable irrigation structure.
PKYDrip provides a practical retrofit path for irrigation projects that need:
- pump control improvement
- multi-zone irrigation control
- reduced manual valve operation
- remote monitoring and alarm support
- staged automation without rebuilding the whole farm
This approach is especially useful for orchards, open-field farms, greenhouse retrofits, and water-limited irrigation projects.
Suitable Upgrade Scenarios
This page is designed for projects such as:
- farms with an existing well or bore pump
- irrigation systems using manual valve operation
- reservoir or tank projects needing better zoning
- existing pump systems without automatic scheduling
- irrigation projects that want to add remote control
- farms that want to upgrade step by step instead of rebuilding everything at once
In many cases, the existing water source and pipe network can still be used.
The main improvement comes from adding better control logic and a clearer irrigation zoning structure.
Common Problems in Existing Irrigation Systems
Many retrofit projects begin with one or more of the following problems:
1. Pump operation is still manual
The pump is turned on and off manually, which increases labor and creates unnecessary operating risk.
2. Too many valves are difficult to manage
As the irrigation area expands, manual valve operation becomes inefficient and inconsistent.
3. Water supply is limited
A well, tank, or reservoir may not be able to irrigate the whole farm at the same time.
Without proper zoning, pressure becomes unstable and irrigation uniformity suffers.
4. The pipe network exists, but control is weak
Many farms already have pipelines installed, but the system lacks proper scheduling, remote access, and automation logic.
5. Future expansion is unclear
The farm may want to add fertigation, sensors, LoRa valve control, or remote management later, but the current system has no structured upgrade path.
Typical Retrofit Logic
Retrofitting an irrigation project usually follows a different design path from a completely new project.
For new farms, the design often starts from land area and crop demand.
For existing farms, the logic is often the opposite:
existing water source → available flow → irrigation time window → zoning structure → automation upgrade
This is why many retrofit projects should be planned from the water side first, not from the land side.
Typical Upgrade Path
PKYDrip supports staged irrigation upgrades rather than forcing a complete rebuild.
Level 1 — Manual to Timed Control
Suitable for farms that already have a pump and irrigation lines.
Upgrade goals:
- automate pump start and stop
- reduce manual operation
- schedule irrigation by time
Typical result:
- basic controller
- pump start relay/control
- simple irrigation schedule
Level 2 — Add Multi-Zone Irrigation Control
Suitable when existing water supply cannot support the whole farm at once.
Upgrade goals:
- divide the farm into irrigation zones
- open valves sequentially
- balance pressure and pump load
Typical result:
- multi-zone controller
- irrigation valve grouping
- sequential irrigation logic
Level 3 — Add Remote and Wireless Management
Suitable for larger farms or projects where field wiring is inconvenient.
Upgrade goals:
- remote valve control
- remote pump management
- status feedback and alarm support
Typical result:
- LoRa valve control
- 4G / gateway communication
- remote access support
Level 4 — Add Fertigation and Sensor Integration
Suitable for projects moving from simple irrigation to more advanced control.
Upgrade goals:
- automate fertilizer dosing
- link irrigation with EC/pH or soil moisture data
- improve water and nutrient management
Typical result:
- fertigation integration
- sensor-linked control
- cloud platform expansion path

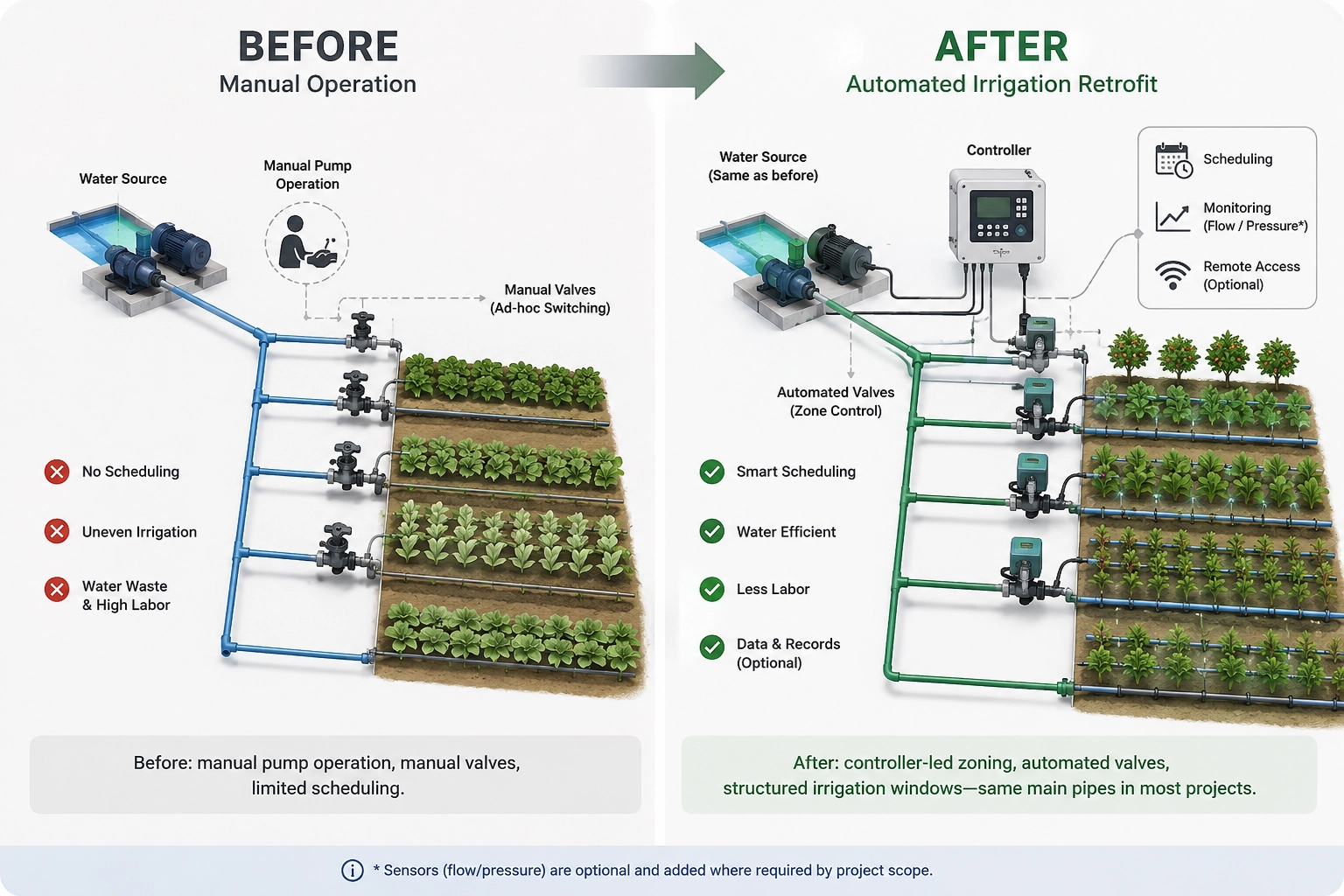

Example Retrofit Structure
A typical retrofit structure may look like this:
- Water Source / Bore / Tank / Reservoir
- Existing Pump
- Pump Control Module
- Main Pipeline
- Zone Valves
- Field Irrigation (drip / sprinkler / micro sprinkler)
- Optional Upgrades:
- LoRa valve control
- 4G remote access
- sensors
- fertigation unit
The exact architecture depends on the existing infrastructure, available flow, pipe condition, project size, and future upgrade goals.
Why Retrofit Instead of Rebuild?
In many practical projects, retrofitting is the more realistic engineering choice.
Advantages may include:
- using the existing water source
- keeping the main pipeline network
- reducing installation work
- lowering initial investment
- improving irrigation management faster
- allowing future staged expansion
For many farms, the goal is not to rebuild everything.
The goal is to make the existing irrigation system more controllable, more reliable, and easier to expand.
When This Page Connects to Other PKYDrip Pages
This upgrade page is not meant to replace all other irrigation content.
It works best as an entry point for users who already have part of the system in place.
For example:
- If the user is planning a completely new open-field irrigation system, the better starting page may be the open-field solution page.
- If the user already has a well, pump, and pipeline, but wants better control, this retrofit page is the better entry point.
- If the user is still unsure how to estimate irrigation type, pump requirement, or project direction, the guided design tool is the better first step.
Recommended Next Step
Choose the next path based on your project condition:
A. Existing pump / existing water source / existing pipeline
Start from retrofit planning and upgrade logic.
B. New farm / new project / not yet sure about irrigation structure
Use the guided design wizard first.
Related Pages
Request an Upgrade Suggestion
If you already have an irrigation system and want to upgrade pump control, valve zoning, or remote operation, please send the following details:
- farm size
- crop type
- existing water source
- pump power (if known)
- irrigation method
- number of manual valves or irrigation zones
- what kind of upgrade you want to achieve
Examples:
- automatic pump control
- timed irrigation
- multi-zone control
- LoRa remote valve control
- fertigation upgrade
